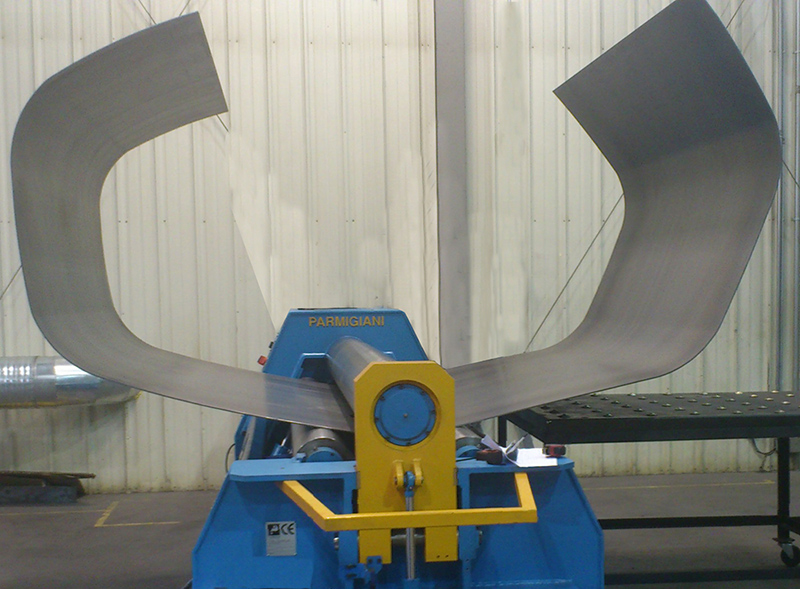

VBH Series 4-roll plate bending rolls

VBH Controls

Everything is under control

Dedicated controls from PARMIGIANI for plate rolling cover an entire range of applications.

All softwares are in house developed by Parmigiani technicians with great experience in plate rolling.

From the simple, compact DIGIMATIC control to the STRADIVARI (unlimited number of axis) there's a PARMIGIANI control for nearly every application.

Parmigiani NC and CNC controls are

100% in house developed.

Controls are an essential requirement for executing precision rolling applications. Select the SAVE&BEND with its 10.4” display or the FAST with a 15” display or the STRADIVARI with a 19" display. They function just like a tablet with touch-screens: navigating through the options is simplified via menus, shortcuts and with context-sensitive help

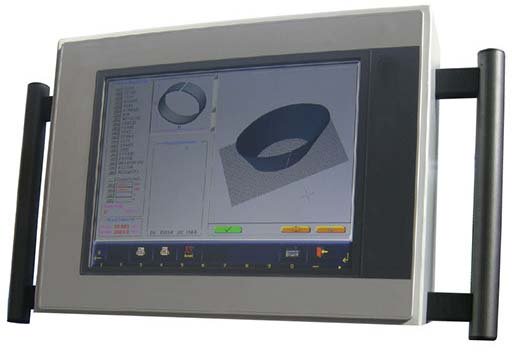

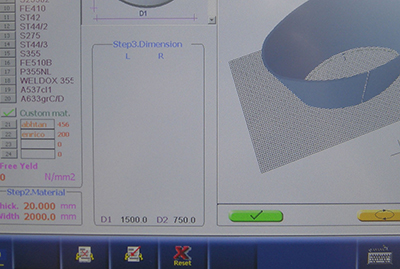

FAST®

CNC Control type PARMIGIANI “FAST”:

with Automatic program mode for single radius shapes: the control automatically creates the complete bending program, simply entering the shell data (radius, thickness, width, type of material), with all the sequence for obtaining the required shape. If necessary the program theoretically calculated by the control can be optimized by the operator.

• 15” full color display, touch – screen

• 9 Controlled Axis

(unlimited upgradeable number of axis)

• Three possible ways of programming:

Aided, Editing and Play-back mode

• Storage Memory Capacity: up to 5.000 programs

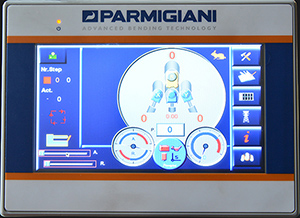

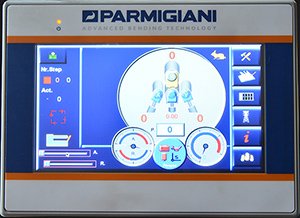

DIGIMATIC®

• 7” full color display, touch – screen

• N° 6 digital read-outs, for Central Lower  and  side rolls. With 2 digital read-outs for each bending roll the operator can read exactly the inclination of the roll during conical bending.

• N° 1 digital read-outs, for Central Lower roll pinching pressure

• 7 Controlled Axis

• It’s possible to create different programs, saving the the pinching pressure of the lower roll and the positions of Lower and Side rolls for the automatic positioning (step by step)

• Storage Memory Capacity:

up to 500 programs of 26 step each.

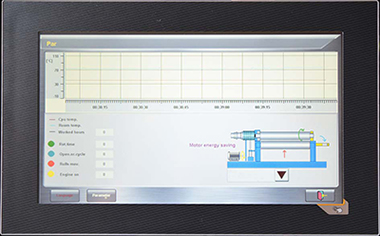

SAVE & BEND®

NC Control type PARMIGIANI “SAVE and BEND”:

The entry level NC with 9 controlled axis,  for fully automatic working mode.

• 10,4” color display, touch – screen

• 9 Controlled Axis  (it can be upgraded up to 16 axis)

• Two possible ways of programming: Editing and Play-back mode

• Storage Memory Capacity: up to 1.000 programs of 50 step each





STRADIVARI® WITH 3-D ROLLCAD®

Discover the most advanced

3-D CNC

World
