PLANET Series Universal Section Bending Machines

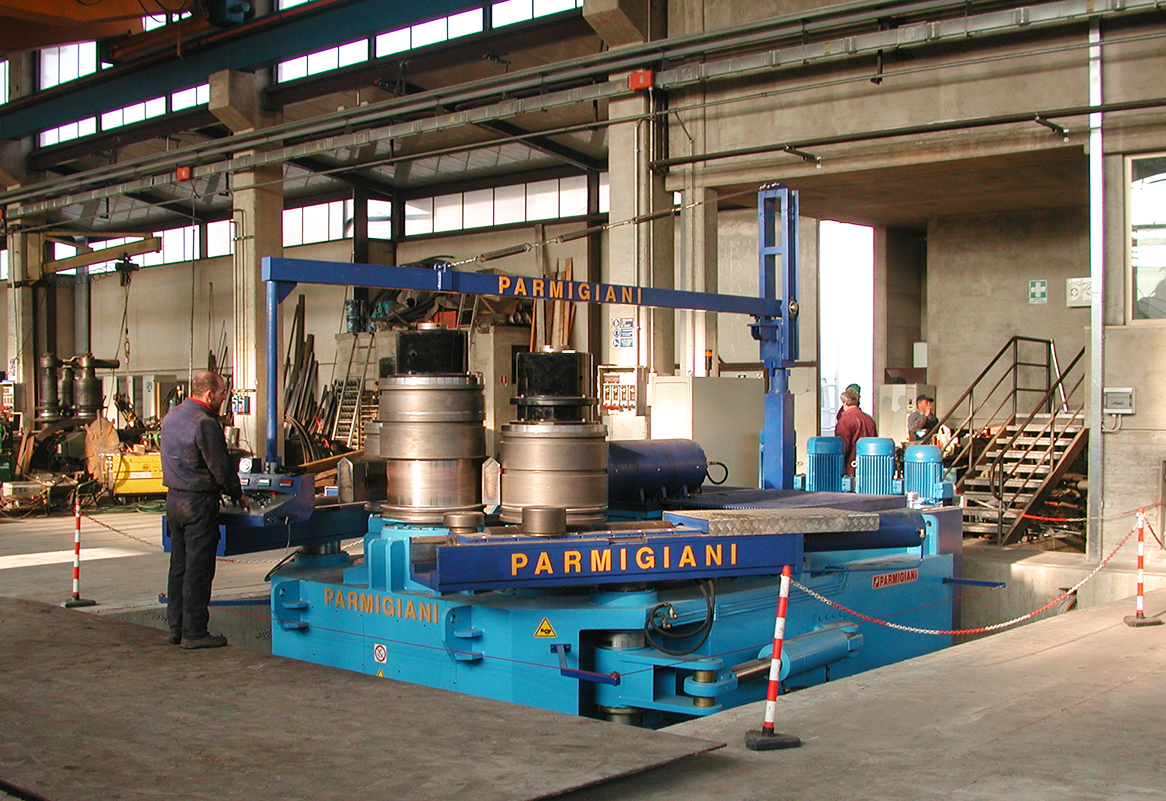

heavy duty section bending machine, large capacity angle roll rolling flat bar

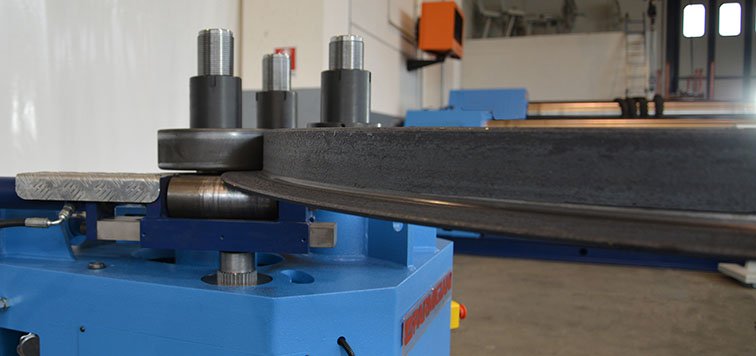

Angle roll planet 15 rolling an angle leg-out

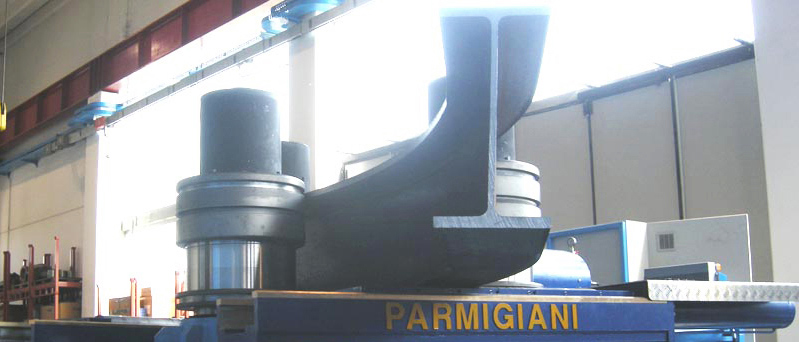

Rolling beams on the easy way. H beams and I beams and channels rolled on the easy way.

PLANET Overview

The section bending machines Planet are the result of almost 100 years of improvement and innovations.

The rolls special design avoids section shape deformation and allows fast production and easy handling even in respect of the tightest bending tolerance.

Fully hydraulic drive with the greatest drive torque of any comparable machine. Starting from model Planet 25 the rolls driving is operated by 3 low speed hydraulic motors and 3 planetary reduction gears.

The PLANET have the largest, most powerful guide rolls available on the market. The six way adjustable design assures the best guiding of the section in and out coming the bending rolls. Mainly used for avoiding shape deformations of asymmetric sections, calibrating the bending radius and enlarging a too small diameter. The six-way design can be effective in many other rolling operations.

Power - Performance

The PLANET Series:

Perfect combination of power and performance
